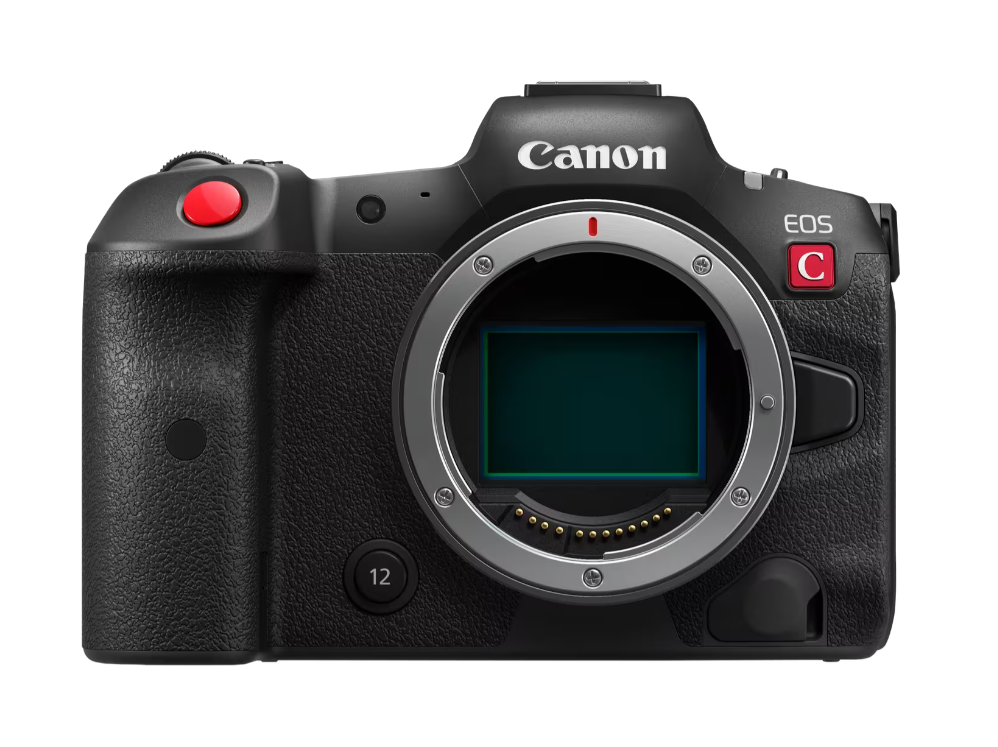

Canon EOS R5 C

1x Canon EOS R5 C body
4x LP-E6NH batteries
1x LP-E6 charger
2x CFexpress Type B cards
1x CFexpress Type B reader
1x camera strap

Full Frame Sensor with 8K/30p 12-bit RAW recording (8K/60p via external power source)
45-megapixel photos up to 20fps (electronic)
Dual Pixel CMOS AF with precise Eye AF and intelligent face/head tracking via EOS iTR AF X
Extensive professional recording formats, including Cinema RAW Light and XF-AVC
HDR recording
Active cooling for long recordings
Timecode IN/OUT terminal
RF Mount
Advanced connectivity and Multi-Function Accessory Shoe

Image Sensor
Sensor	3:2 Full Frame CMOS sensor (36 x 24mm)
Sensor Modes	Full Frame (8K) / Super 35mm (Crop) / Super 16mm (Crop)
Total Pixels	Approx. 47.10 megapixels
Effective Pixels	Video Mode: Approx. 35.40 megapixels (8192 x 4320): When resolution is 8192 x 4320, 4096 x 2160, or 2048 x 1080 Approx. 33.20 megapixels (7680 x 4320): When resolution is 7680 x 4320, 3840 x 2160, or 1920 x 1080 Photo Mode: Approx. 45 megapixels (8192 x 5464)
Effective Sensor Screen Size	36.0 x 19.0 mm (40.7 mm on the diagonal): When resolution is 8192 x 4320, 4096 x 2160 or 2048 x 1080 33.8 x 19.0 mm (38.8 mm on the diagonal): When resolution is 7680 x 4320, 3840 x 2160, or 1920 x 1080
Dynamic Range	Canon Log 3: 1600% / 14 stops (at ISO 800) Wide DR: 800% (at ISO 400)
Image Processor
Type	DIGIC X
Lens
Lens Mount	Canon RF mount Compatible lenses: All RF lenses and EF lenses (includes EF-S lenses/EF cinema lenses)
Lens Magnification Factor	Full Frame: Actual focal length x approx. 1.0 Super 35mm (Crop): 5952x3140, 4096x2160 or 2048x1080 resolution: Actual focal length x approx. 1.460 3840x2160, 1920x1080 or 1270x720 resolution: Actual focal length x approx. 1.534 Super 16mm (Crop): In 2976x1570 or 2048x1080 resolution: Actual focal length x approx. 2.920 In 1920x1080 or 1270x720 resolution: Actual focal length x approx. 3.069
Peripheral Illumination Correction	Yes
Chromatic Aberration Correction	Yes
Distortion Correction	Yes, RF Mount lenses only
Diffraction Correction	Yes
ND Filter	No
Focus Control	Via lens, Browser Remote, Camera Connect or EOS Utility
Iris Control (EF Mount Lenses)	1/2-stop, 1/3-stop or FINE control
Cooke/I Technology Support	No
Anamorphic Lens Support	Yes, x2.0 / x1.8 / x1.3
Image Stabilization System	Yes, 5-axis Electronic IS. Coordinates with supported lenses featuring optical-IS for optimal performance
Recording
Internal Recording Media	1x CFexpress card (CFexpress 2.0 Type B) 1x SD card (SD/SDHC/SDXC) (SD Card recording available at bitrates up to 650 Mbps)
Recording Time1*	Cinema RAW Light LT: 8192 x 4320 1070 Mbps: 63 Mins Cinema RAW Light ST: 8192 x 4320: 1650 Mbps 41 Mins Cinema RAW Light HQ: 5952 x 3140: 1770 Mbps 38 Mins XF-AVC / MXF: 4096x2160: 410 Mbps 156 Mins MP4 (HEVC): 4096x2160: 225 Mbps 285 Mins MP4 (H.264): 4096x2160: 150 Mbps 428 Mins
Recording Formats	Video Mode: Cinema RAW Light (CRM): 12-bit RAW XF-AVC (MXF):4:2:2 10-bit (ALL-I or Long GOP) HEVC (MP4): 4:2:2 10-bit / 4:2:0 10-bit H.264 (MP4): 4:2:0 8-bit Photo Mode: RAW / C-RAW / Dual Pixel RAW2 / HEIF3 / JPEG
Relay Recording	Yes
Double Slot (Simultaneous) Recording	Yes
Simultaneous Recording in Multiple Formats	Yes, in Dual Recording Mode Options Available: [CRL / XF-AVC / MP4] [All-I / Long GOP] [4:2:2 10-bit / 4:2:0 10-bit / 4:2:0 8-bit] [8K / 4K / 2K / FHD]
System Frequency / Frame Rates	59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P) 50.00Hz mode (50.00P / 50.00i / 25.00P) 24.00 Hz mode (24.00P)
Cinema RAW Light Bit Rate/Bit Depth (PAL)	12-bit Cinema RAW Light LT:4* 8192 x 4320 / 50P / 2140 Mbps: approx. 31 Mins 8192 x 4320 / 25P / 1070 Mbps: approx. 63 Mins 5952 x 3140 / 50P / 1140 Mbps: approx. 59 Mins 5952 x 3140 / 25P / 556 Mbps: approx. 122 Mins 2976 x 1570 / 50P / 287 Mbps: approx. 237 Mins 2976 x 1570 / 25P / 144 Mbps: approx. 474 Mins 12-bit Cinema RAW Light ST: 8192 x 4320 / 25P / 1650 Mbps: approx. 41 Mins 5952 x 3140 / 50P / 1750 Mbps: approx. 39 Mins 5952 x 3140 / 25P / 871 Mbps: approx. 78 Mins 2976 x 1570 / 50P / 441 Mbps: approx. 154 Mins 2976 x 1570 / 25P / 221 Mbps: approx. 308 Mins 12-bit Cinema RAW Light HQ: 5952 x 3140 / 25P / 1770 Mbps: approx. 38 Mins 2976 x 1570 / 50P / 896 Mbps: approx. 76 Mins 2976 x 1570 / 25P / 448 Mbps: approx. 152 Mins
XF-AVC Recording Bit Rate / Sampling (PAL)	4:2:2 10-bit (Intra-frame):5* 4096x2160 or 3840x2160 / 50P / 810 Mbps: approx. 79 Mins 4096x2160 or 3840x2160 / 25P / 410 Mbps: approx. 156 Mins 2048x1080 or 1920x1080 / 50P or 50i / 310 Mbps: approx. 207 Mins 2048x1080 or 1920x1080 / 25P / 160 Mbps: approx. 401 Mins 4:2:2 10-bit (Long GOP): 4096x2160 or 3840x2160 / 50P / 260 Mbps: approx. 246 Mins 4096x2160 or 3840x2160 / 25P / 160 Mbps: approx. 401 Mins 2048x1080 or 1920x1080 / 50P or 50i / 50 Mbps: approx. 1284 Mins 2048x1080 or 1920x1080 / 25P / 50 Mbps: approx. 1284 Mins
MP4 Recording Bit Rate / Sampling (PAL)	HEVC 4:2:2 10-bit (Long GOP):6* 8192x4320 or 7680x4320 / 25P / 540 Mbps: approx. 118 Mins 4096x2160 or 3840x2160 / 50P / 225 Mbps: approx. 285 Mins 4096x2160 or 3840x2160 / 25P / 135 Mbps: approx. 475 Mins 2048x1080 or 1920x1080 / 50P or 25P / 50 Mbps: approx. 1284 Mins HEVC 4:2:0 10-bit (Long GOP): 8192x4320 or 7680x4320 / 25P / 400 Mbps: approx. 160 Mins 4096x2160 or 3840x2160 / 50P / 170 Mbps: approx. 377 Mins 4096x2160 or 3840x2160 / 25P / 100 Mbps: approx. 642 Mins 2048x1080 or 1920x1080 / 50P or 25P / 35 Mbps: approx. 1834 Mins H.264 4:2:0 8-bit (Long GOP): 4096x2160 or 3840x2160 / 50P or 25P / 150 Mbps: approx. 428 Mins 2048x1080 or 1920x1080 / 50P or 25P / 35 Mbps: approx. 1834 Mins
Proxy Recording Bit Rate / Sampling (PAL)	XF-AVC 4:2:0 8-bit (Long GOP) 2048 X 1080 or 1920 x 1080 / 50P / 35 Mbps 2048 X 1080 or 1920 x 1080 / 25P / 24 Mbps H.264 MP4 4:2:0 8-bit (Long GOP) 2048 X 1080 or 1920 x 1080 / 50P or 25P / 9 Mbps
Slow/Fast Motion	8K recording up to 30FPS (60FPS with external power) 4K / FHD recording: up to 120FPS Audio recording and auto-focus options available.
Interval Record	Yes
Frame Record	Yes
Pre Record (Cache Record)	Yes, 3 seconds (XF-AVC or MP4 recording only)
Scan Reverse	Yes
Photo Recording Size	3:2 ratio: (L, RAW, C-RAW) 8192x5464, (M1) 5808x3872, (S1) 4176x2784, (S2) 2400x1600 1.6x (crop): (L) 5088x3392, (S2) 2400x1600 4:3 ratio: (L) 7280x5464, (M1) 5152x3872, (S1) 3712x2784, (S2) 2112x1600 16:9 ratio: (L) 8192x4608, (M1) 5808x3264, (S1) 4176x2344, (S2) 2400x1344 1:1 ratio: (L) 5456x5456, (M1) 3872x3872, (S1) 2784x2784, (S2) 1600x1600
System
Display Type	3.2 inch 3:2 LCD Touch Panel
Display Resolution	2.1 million dots
Display Touch Screen Functions	Focus point selection, Shooting setting adjust, Start/Stop recording (activated via Menu)
OSD for Vertical Shooting	Yes, 90-degree rotation
Wave Form Monitor	Yes. LCD, EVF or HDMI
False Colour Display (Exposure Indication)	Yes. LCD, EVF or HDMI (Use of viewing LUT will affect false colour display)
Colour Bars	SMPTE, EBU and ARIB
Peaking	Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)
Zebra	Level 1; Level 2; Both Output via HDMI: Yes
Markers	On/Off selectable: centre, horizontal, grid, aspect, safety zone, rectangular and user marker. Colour selectable, yellow, blue, green, red, black, grey or white.
EVF
Built-In EVF	0.5-inch OLED colour EVF, 5.76 million dots
Optional EVF Accessory	N/A
Inputs / Outputs
Audio In	1x 3.5mm mic input 1x Built-in mono microphone (XLR input available via TASCAM CA-XLR2d-C accessory)
Headphone Output	1x 3.5 mm stereo output
Video Monitor Output	No
HDMI	1x micro-HDMI (8K RAW output available)7*
USB	1x USB-C (3.2 Gen1) for power, charging and communication (UVC Video output / Content Transfer Mobile App)
SDI Output	No
Time Code	1x DIN 1.0/2.3 (Input/Output)
Genlock	No
Sync	1x Flash Sync
DC Output	No
DC Input	Yes, via DR-E6C DC Coupler
Remote Control Terminal	1x N3-type terminal
Wireless Control Terminal	Available via WFT-R10 Accessory
Lens Terminal	No
Ethernet Terminal	Available via WFT-R10 Accessory
IP Streaming / FTP	Yes, available via WFT-R10 Accessory Protocol: UDP, RTP and RTP+FEC
User LUT Input	Yes, in-built LUTs/View Assist available for LCD/EVF/HDMI Monitoring. Custom LUTs can be applied directly to internal recordings via Look File function (compatible with 17 or 33 grid .cube files).
Video Connector	No
Default Function Button Settings	1.One-Shot AF 2.Magnification 3.DISP 4.Menu 5.Push Auto Iris 6.AF lock 7.Assignable Button Menu 8.Display Panel Info 9.Key Lock 10.(Unassigned) 11.FUNC 12.(Unassigned) 13. Set White Balance
User Assignable Buttons	13 Assignable buttons (numbered) on camera body. In excess of 80 options via the menu
Miscellaneous
Tally Lamp	Yes
Custom Dial	3x Electronic Dials + Multi-controller
Exposure
Exposure Metering	Video Mode: Standard, Backlight, Spotlight Photo Mode: Evaluative, Partial, Spot, Centre Spot, AF-point Linked, Centre weighted average
Exposure Compensation	Yes
Auto Exposure Mode	Yes (Video mode: Auto Iris / ISO)
Push Auto Iris	Yes
Exposure Lock	Yes
Auto Gain Control Setting	Yes
ISO Sensitivity	Video Mode: ISO 100 to ISO 25,600 / 102,400* (increments of 1 or 1/3 stop) * When the sensitivity is expanded Photo Mode: ISO 100 to ISO 51,200 / 102,400* (increments of 1 or 1/3 stop) * When the sensitivity is expanded
Auto Focus System	Video Mode: Dual Pixel CMOS AF with Eye AF and EOS iTR AF X Photo Mode: Dual Pixel CMOS AF II
AF Frame Sizes	Large; size equivalent to approx. 20% (vertical) x 25% (horizontal) of the image display range Small; size equivalent to approx. 20% (vertical) x 8% (horizontal) of the image display range Whole Area; size equivalent to approx. 80% of sensor
Auto Focus Modes	One-Shot AF, Continuous AF, Continuous AF: Only Near Focus
Face Detection AF	Face Priority, Face Only, Eye AF
Focus Guide	For manual focus assist with compatible Canon RF mount, EF mount, Cine Servo Lenses
Gain Setting	-6 dB to 42 dB / 54 dB* (Normal or Fine increments) * When the sensitivity is expanded
Shutter
Control Modes	Video Mode: Off; Speed; Angle; Clear Scan; Slow Photo Mode: Mechanical, Elec. 1st-curtain, Electronic
Shutter Speed	Video Mode: 1 sec to 1/2000 depending on frame rate and Shutter Control Mode, 39 setting options Photo Mode: 30-1/8000 sec (1/2 or 1/3 stop increments) Bulb (Total shutter speed range. Available range varies by shooting mode)
Shutter Angle	11.25º to 360º depending on frame rate
Slow Shutter (SLS)	1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate
Clear Scan	24.00 Hz8* to 250.40 Hz
Custom Picture
Stored Configurations	Video Mode: C1: BT.709 Wide DR (BT.709 Gamut) C2: Canon Log 3 (Cinema Gamut) C3: PQ (BT.2020 Gamut) C4: HLG (BT.2020 Gamut)v C5. BT.709 Standard (BT.709 Gamut) C6. EOS Standard (BT.709 Gamut) C7. EOS Neutral (BT.709 Gamut) USER8 to USER20 (Wide DR / BT.709 Gamut) Photo Mode: Auto / Standard / Portrait / Landscape / Fine Detail / Neutral / Faithful / Monochrome / User Defined (x3)
Colour Matrix	CUSTOM PICTURE: Colour Matrix Phase, Gain and RGB adjustment, in tandem with Gamma selection
Master Pedestal	-50 to +50
Master Black	Adjustable for each channel RGB -50 to +50 plus Master Black -50 to +50
Black Gamma	Adjustable Level -50 to +50, Range -20 to +50 and Point -20 to +50
Low Key Saturation	Adjustable: -50 to +50
Knee	Point -50 to +109, Slope -35 to +50, Saturation -10 to +10
Sharpness	Adjustment for Level, H Detail Freq., Coring, HV Detail Balance, Limit, Select, Knee Aperture and Level dependent sharpness
Noise Reduction	Off, On - Three Options: Automatic (ON/OFF) / Spatial Filter (1- 12) / Frame Correlation (1-3)
Skin Detail	Off, Low, Middle, High / Hue, Chroma, Area, Luminance. 32 steps
Selective Noise Reduction	Off, Low, Middle, High / Hue, Chroma, Area, Luminance.
Colour Matrix (User Settings)	Phase, Gain and RGB adjustment, in tandem with Gamma selection
White Balance	AWB, USER setting 01(setting range: 2000K to 15000K/ -20CC to +20CC), daylight, tungsten, settings (A/B)
Colour Correction	Area selection / area revision of two areas
Setup Level	-50 to +50 On/Off
Wi-Fi & GPS Specifications
Wi-Fi (Optional Third Party Accessory)	Video Mode: Requires WFT-R10 Accessory Supports Browser Remote / Content Transfer Mobile / IP Streaming Photo Mode: Built-in Wireless LAN (IEEE802.11a/b/g/n/ac) (5Ghz /2.4 GHz), with Bluetooth 5.0 support Supports EOS Utility / Camera Connect / image.canon
GPS Information (Optional Accessory)	Requires GP-E2 Accessory Latitude/Longitude/Elevation, Coordinated Universal Time (UTC)
White Balance
Auto	Yes
Preset	Video Mode: Daylight (5400K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B Photo Mode: AWB, Daylight, Shade, Cloudy, Tungsten, Fluorescent, Flash, Kelvin, Custom
White Balance Shift	Video Mode: -9 to +9 (Daylight and Tungsten only) Photo Mode: -9 to +9 (Blue/Amber) -9 to +9 (Magenta/Green)
Black Balance
Black Balance Adjustment	Yes
Time Code
Count Up System	Regen, RecRun, Free Run, External, Hold (Drop frame available for some frame rates)
Start Value Setting	“00:00:00:00”, Set/Reset selectable
Audio
Recording Format	Cinema RAW Light or XF-AVC: Linear PCM (24-bit / 48 kHz, 4 channels) MP4: MPEG-2 AAC LC (16-bit, 48 kHz, 2-channel) / Linear PCM (16-bit, 48 kHz, 4-channel)
Accessories
Supplied	Battery Pack LP-E6NH Battery Charger LC-E6 Shoulder Strap USB-C Cable Cable Protector AC Cable
Optional	Canon Battery Pack LP-E6NH/LP-E6N//LP-E6 Canon Battery Charger LC-E6 Canon Battery Grip BG-R10 Canon DC Coupler DR-E6C Canon AC Adapter CA-946 Canon USB Power Adapter PD-E1 Canon Wireless File Transmitter WFT-R10 Canon Interface Cable IFC-100U/IFC-400U Canon Shoulder Strap SS-1200 Canon GPS Receiver GP-E2 Canon RF lenses, EF lenses, EF cinema lenses, and accessories designed for these lenses Canon Mount Adapter EF-EOS R Canon Control Ring Mount Adapter EF-EOS R Canon Drop-In Filter Mount Adapter EF-EOS R (w/ drop-in variable ND filter A and circular polarizing filter A) Canon Mount Adapter EF-EOS R 0.71x Canon Extender RF1.4x Canon Extender RF2x Canon Remote Controller RC-6 Canon Wireless Remote Controller BR-E1 Canon Remote Switch RS-80N3 Canon Timer Remote Controller TC-80N3 Canon Directional Stereo Microphone DM-E1 / DM-E1D Canon Stereo Microphone DM-E100
Third Party Accessories	TASCAM CA-XLR2d-C XLR Adapter
Power Source
Power Supply (Battery)	LP-E6NH Battery Pack (Supplied) / LP-E6N and LP-E6 (Compatible)
Power supply (Mains)	USB-C Power Adapter PD-E1 DC Coupler DR-E6C AC Adapter CA-946
Power Consumption (Approx.)	8K RAW 25P (10.5W) 8K MP4 25P (11.2W) 4K HEVC 50P (12.9W) 4K XF-AVC 50P (13.3W)
Recording Time (Approx.)	With supplied LP-E6NH battery pack: 8K RAW 25P: 50 Mins 8K MP4 25P: 45 Mins 4K HEVC 50P: 40 Mins 4K XF-AVC 50P: 35 Mins
Physical Specifications
Dimensions (Main Body Only)	approx. 142 x 101 x 111 mm
Weight (Body Only)	approx. 680g
Weight (Accessories)	approx. 770g (LP-E6NH, CFexpress Card, SD Card)
Operating Temperature Range	approx. 0 to 40°C, (85% relative humidity) approx. -5 to 45°C, (60% relative humidity)
Notes	1* Based on 25P recording on a 512GB card 2* RAW / C-RAW / Dual Pixel RAW files are 14-bit with Mechanical shutter / Electronic 1st Curtain, 13-bit A/D conversion with H+ mode and 12-bit A/D conversion with Electronic shutter 3* 10-bit HEIF images in PQ HDR mode 4* Recording time based on 512GB card 5* Recording time based on 512GB card 6* Recording time based on 512GB card 7* ProRes RAW Recording with Atomos Ninja V+ external recorder 8* The frequency will differ depending on the frame rate setting.
