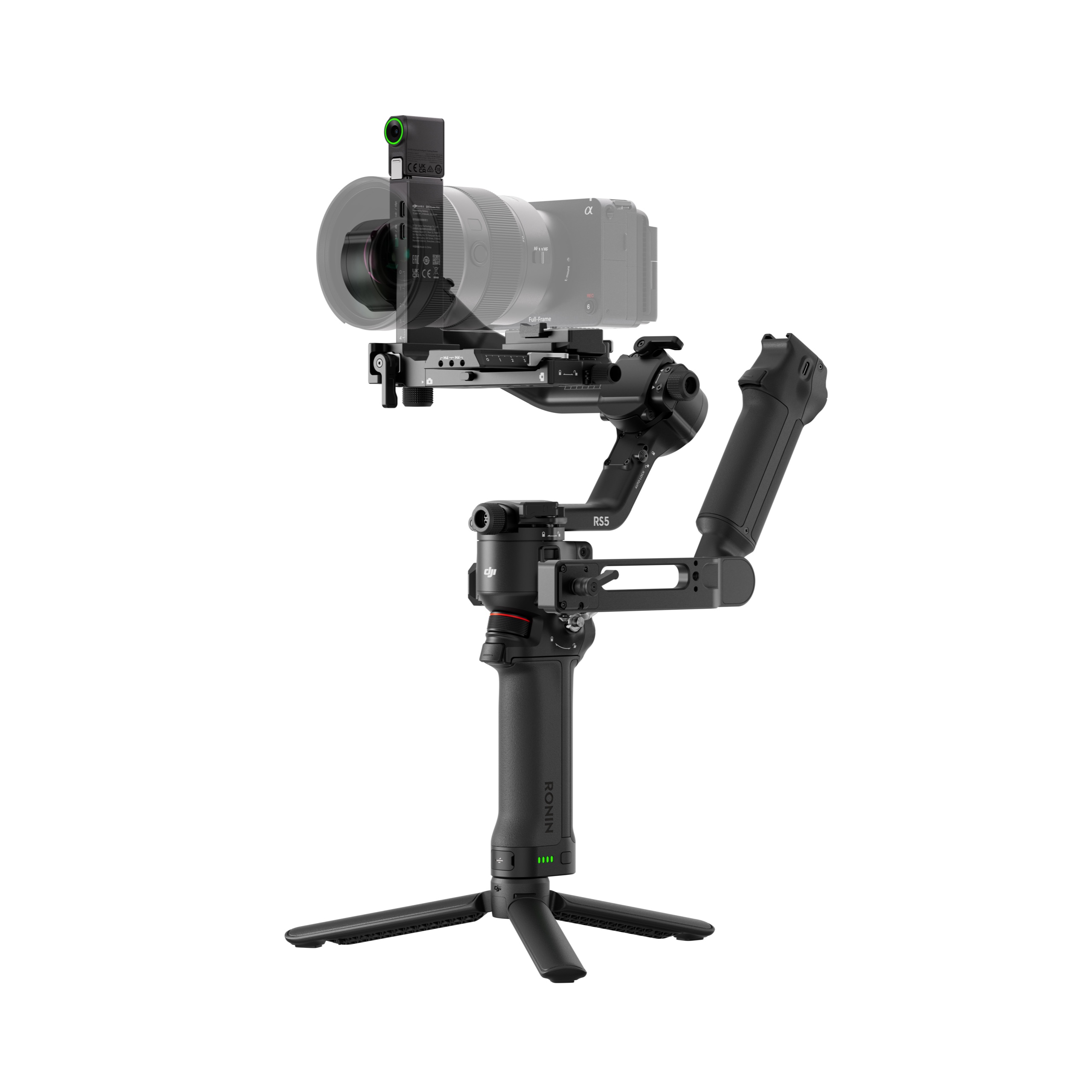

DJI RS 5 Combo
1x Gimbal
1x Quick Open Tripod
1x Carrying Case
1x Lens-Fastening Support
1x L-Shaped Cable (USB-C 13cm)
1x Screw Kit
1x RS 5 Upper Quick Release Plate
1x RS 5 Lower Quick Release Plate
2x BG33 Battery Grip
1x RS Enhanced Intelligent Tracking Module
1x Electronic Briefcase Handle
1x Multi-Camera Control Cable (USB-C 30cm)
1x DJI RS Twist Grip Dual Handles
- Enhanced Intelligent Tracking and Composition
- Electronic Briefcase Handle With Gimbal and Camera Control
- 1-Hour Full Charge, 15% Extended Runtime
- Fine-Tuning Knobs and Teflon™ Enhanced Balancing
- 2nd-Gen Automated Axis Locks
- New Z-Axis Indicator
| PERIPHERAL | |
| Accessory ports | Ronin Series Accessories (RSA) / NATO ports |
| 1/4"-20 mounting hole | |
| Cold shoe | |
| Camera control port (USB-C) | |
| Multifunctional port (USB-C) | |
| BATTERY | |
| Model | BHX715-2150-15.48 |
| Type | LiPo 4S |
| Capacity | 2150 mAh |
| Energy | 33.29 Wh |
| Voltage | 11.2 V to 17.8 V |
| USB input | 5 V / 3 A |
| 9 V / 3 A | |
| 12 V / 3 A | |
| 15 V / 3 A | |
| 20 V / 3 A | |
| Max standby time | Approx. 14 hours |
| Charging time | Approx. 1 hour |
| Suggested charging temperature | 5 °C to 40 °C (41 °F to 104 °F) |
| CONNECTIONS | |
| Wireless | Bluetooth 5.0 |
| Charging port | USB-C charging port |
| RONIN APP REQUIREMENTS | |
| iOS | iOS 14.0 or above |
| Android | Android 9.0 or above |
| LANGUAGES SUPPORTED BY TOUCHSCREEN | |
| Languages | English |
| Simplified Chinese | |
| Traditional Chinese | |
| German | |
| French | |
| Korean | |
| Japanese | |
| Spanish | |
| Portuguese (Brazil) | |
| Russian | |
| Thai | |
| WORKING PERFORMANCE | |
| Tested payload | 3.0 kg (6.6 lbs) |
| Maximum controlled rotation speed | Pan: 360°/s |
| Tilt: 360°/s | |
| Roll: 360°/s | |
| MECHANICAL RANGE | |
| Pan axis | 360° continuous rotation |
| Roll axis | -95° to +240° |
| Tilt axis | -112° to +214° |
| Axis lock | Auto |
| Vertical shooting | Supported |
| MECHANICAL & ELECTRICAL PROPERTIES | |
| Operating frequency | 2.4000–2.4835 GHz |
| Bluetooth transmitter power | < 8 dBm |
| Operating temperature | -20 °C to 45 °C (-4 °F to 113 °F) |
| WEIGHT | |
| Gimbal | Approx. 1193 g (2.63 lbs) |
| Including upper and lower quick-release plates and screws | |
| Grip | Approx. 274 g (0.6 lbs) |
| Quick-open tripod | Approx. 149 g (0.3 lbs) |
| Upper and lower quick-release plates | Approx. 93 g (0.21 lbs) |
| DIMENSIONS | |
| Folded | 247.4 × 115.7 × 258.7 mm (L × W × H) |
| Excluding camera, grip, and quick-open tripod | |
| Unfolded | 223.2 × 192.2 × 418.8 mm (L × W × H) |
| Including grip, excluding camera and quick-open tripod | |
| ACCESSORIES – DJI RS ENHANCED INTELLIGENT TRACKING MODULE | |
| Weight | Approx. 19 g (0.04 lbs) |
| Dimensions | 35.9 × 17.5 × 38.5 mm (L × W × H) |
| Tracking distance | 0.5–10 m |
| Operating environment | Illuminance > 20 lux |
| Trigger methods | Gimbal trigger |
| Gesture | |
| Gimbal touchscreen | |
| Gesture functions | Start/stop of tracking |
| Start/stop of recording | |
| Framing adjustment | |
| Power consumption | Approx. 1 W |
| Operating temperature | -10 °C to 45 °C (14 °F to 113 °F) |
| Mounting method | Magnetic attachment |
| ACCESSORIES – ELECTRONIC BRIEFCASE HANDLE | |
| Weight | Approx. 149 g (0.33 lbs) |
| Dimensions | 60 × 197.5 × 79.5 mm (L × W × H) |
| Standby power consumption | Approx. 0.2 W |
| Operating temperature | -20 °C to 45 °C (-4 °F to 113 °F) |
