Zoom L-12 & 4x Shure SM7dB Podcasting Kit

Zoom L-12 & 4x Shure SM7dB Podcasting Kit Zoom L-12 & 4x Shure SM7dB Podcasting Kit
Zoom L-12 & 4x Shure SM7dB Podcasting Kit Zoom L-12 & 4x Shure SM7dB Podcasting Kit

1x Zoom L-12 Livetrak Digital Mixer & Recorder
4x Shure SM7dB dynamic vocal microphones
4x Gator Boom Arms w/table clamps
4x XLR cables
4x Floor mic stands
5x Shure SRH440A Headphones

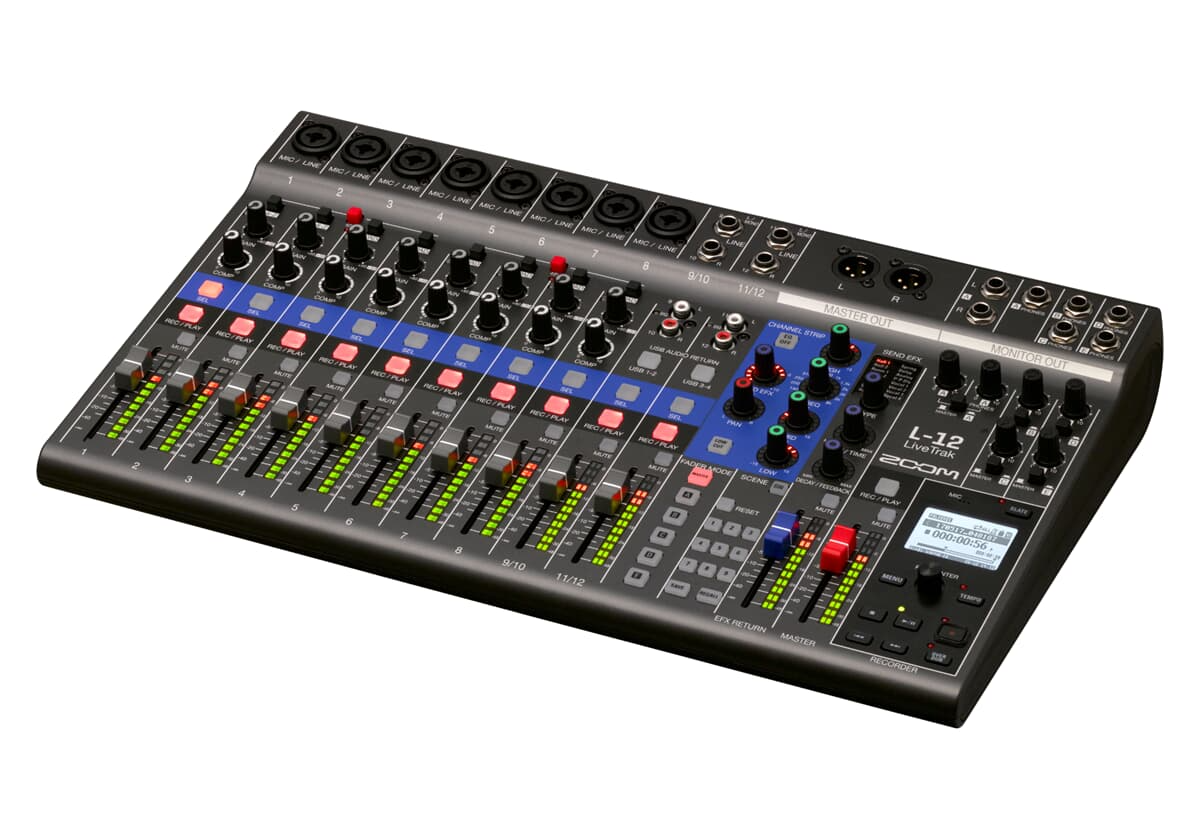

Zoom L-12 mixer & recorder

  • 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
  • 14-track simultaneous recording, 12-track playback
  • 14-in/4-out USB audio interface connectivity
  • 5 powered headphone outputs, each with a customizable and saveable mix
  • Add backing/click tracks from your computer to your live mix and recording
  • RCA and TRS line inputs
  • 48V phantom power (channels 1-4 and 5-8)
  • Hi-Z connectivity (channels 1 and 2)
  • 26 dB pad (channels 3-8)
  • Built-in compression control (Channels 1-8)
  • Digital level meters -48 dB to -0 dB
  • Master mute button
  • Low-cut control
  • Stereo panning
  • Master and Monitor Outputs A-E
  • Scene saving function, up to 9 scenes saved at a time
  • 16 built-in delay and reverb effects with adjustable parameters
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • SD card input
  • Built-in metronome
  • Automatic recording starting/stopping capability
  • Project protection
  • Import/export projects with USB 2.0 host port
  • Latency adjustment for A-to-D conversion
  •

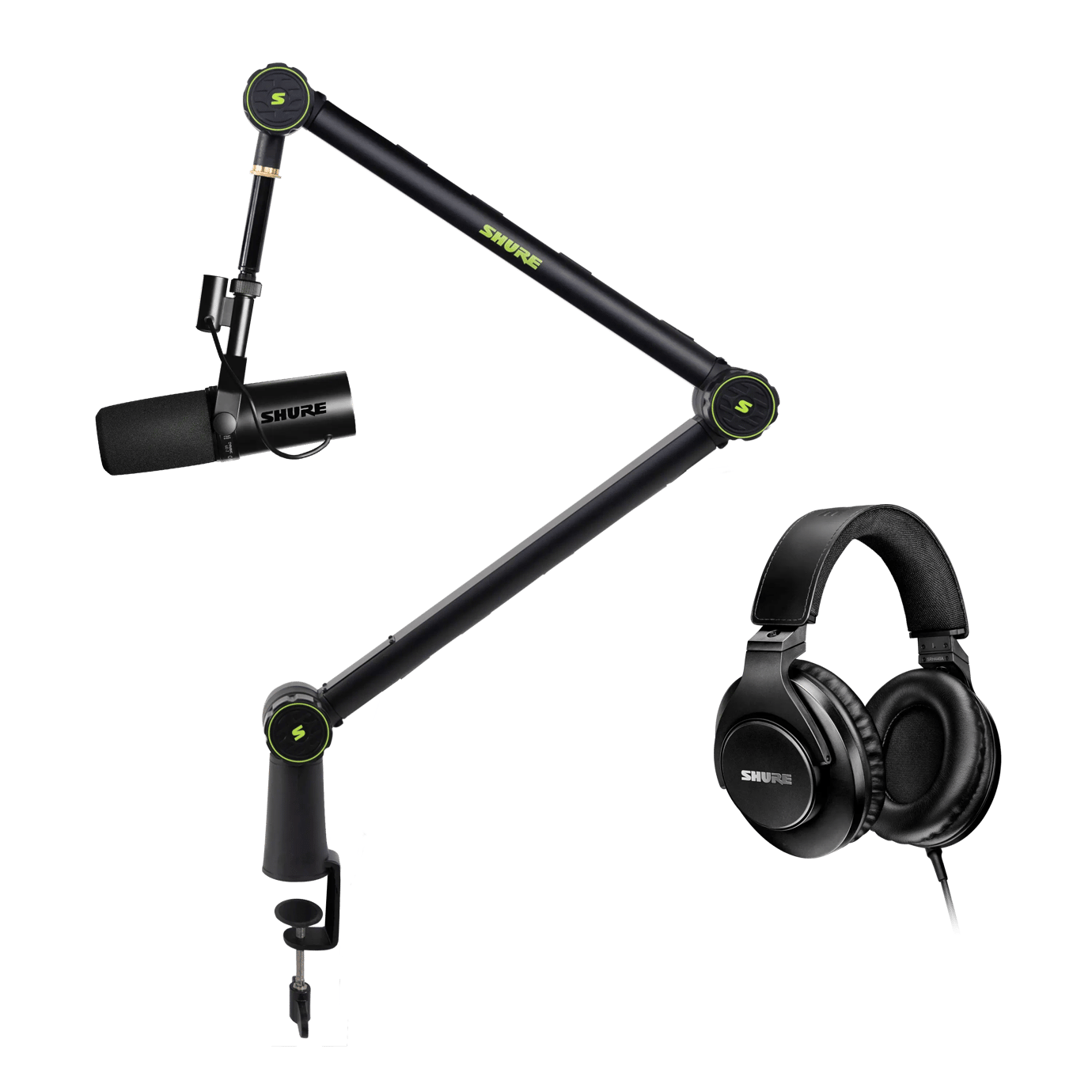

Shure SM7dB microphones
  • Cardioid dynamic microphone with a smooth vocal sound
  • Identical circuitry and design to SM7B for a warm broadcast sound
  • Built-in preamp boosts gain with 18 dB, 28 dB, and bypass mode
  • Low-cut and presence boost EQ settings for adjustable tonality
  • Improved resistance to electrical hum, interference, and noise
  • Internal air suspension shock isolation system eliminates mechanical noise
  • Included pop filter prevents plosives and helps with close-up vocal performances
  • Yoke mount for easy mounting on microphone stands and studio arms
  • Cardioid polar pattern with consistent sensitivity and frequency response
  • Durable build protects microphone capsule for long-term reliability

Zoom L-12 mixer & recorder Specifications

In- and outputs
8
1 to 2
12
4

Tracks
12
12

Memory
SD / SDHC / SDXC Card
512 GB

Options
None
No
No
Yes
No
Yes
No
No
Yes
Yes
Yes
No
Yes
No

Shure SM7dB

Type: Dynamic (moving coil)
Polar Pattern: Cardioid
Frequency Response: 50 Hz to 20 kHz
Output Impedance:150Ω in Bypass Mode
27Ω in Preamp Mode

Sensitivity:-59 dBV/Pa (1.12 mV) Flat Response Bypass Mode (at 1 kHz, open circuit voltage)
-41 dBV/Pa (1.12 mV) Flat Response +18 Preamp Mode (at 1 kHz, open circuit voltage)
-31 dBV/Pa (1.12 mV) Flat Response +28 Preamp Mode (at 1 kHz, open circuit voltage)

Polarity: Positive pressure on diaphragm produces positive voltage on Pin 2 relative to Pin 3
Net Weight: 837 g (1.875 lbs)
Housing: Black enamel aluminium and steel case with black foam windscreen
Product Code: SM7dB
