Zoom L-8 & 4x Shure SM7dB Podcasting Kit

Zoom L-8 & 4x Shure SM7dB Podcasting Kit Zoom L-8 & 4x Shure SM7dB Podcasting Kit
Zoom L-8 & 4x Shure SM7dB Podcasting Kit Zoom L-8 & 4x Shure SM7dB Podcasting Kit

1x Zoom L-8 Livetrak Digital Mixer & Recorder
4x Shure SM7dB dynamic vocal microphones
4x Gator Boom Arms w/table clamps
4x XLR cables
4x Floor mic stands
4x Shure SRH440A Headphones

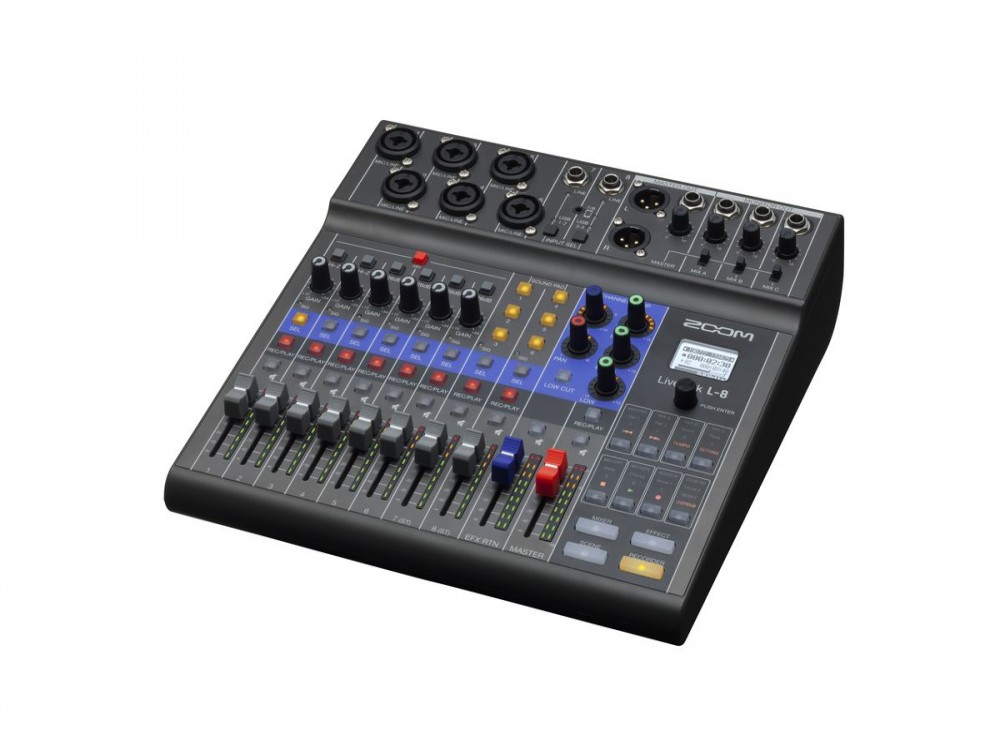

Zoom L-8 mixer & recorder

  • А роrtаblе роdсаѕtіng/muѕіс ѕtudіо іdеаl fоr muѕісіаnѕ аnd ѕmаll bаndѕ
  • Dеѕіgnеd fоr 12-trасk ѕіmultаnеоuѕ rесоrdіng аnd 10-trасk рlауbасk
  • Fоur hеаdрhоnе оutрutѕ fоr multірlе раrtісіраntѕ
  • Міх-mіnuѕ funсtіоn rеduсеѕ есhоеѕ аnd fееdbасk durіng рhоnе іntеrvіеwѕ
  • Fеаturеѕ uр tо thrее сuѕtоm mоnіtоr mіхеѕ, 3-bаnd ЕQ, FХ ѕесtіоn & lіvе rесоrdіng сараbіlіtіеѕ
  • Fеаturеѕ ѕіх ѕоund trіggеr раdѕ thаt wоrk реrfесtlу fоr роdсаѕtеrѕ
  • Ѕеаmlеѕѕ рhоnе соnnесtіvіtу wіth а ТRRЅ саblе
  • Соmеѕ wіth 13 рrеѕеt ѕоundѕ fоr іtѕ ѕоund раdѕ
  • Ѕtоrеѕ uр tо ѕеvеn rесаllаblе ѕсеnеѕ fоr dіffеrеnt rесоrdіng & mіхіng соnfіgurаtіоnѕ
  • Wоrkѕ аѕ а 24-bіt/96kНz 12-іn/4-оut dіgіtаl rесоrdеr fоr сuttіng trасkѕ іn а hоmе ѕtudіо
  • Runѕ оn fоur АА bаttеrіеѕ оr а UЅВ bаttеrу
  • Іdеаl mіхеr fоr соffее ѕhорѕ, rеѕtаurаntѕ аnd оthеr ѕmаll vеnuеѕ

Shure SM7dB microphones
  • Cardioid dynamic microphone with a smooth vocal sound
  • Identical circuitry and design to SM7B for a warm broadcast sound
  • Built-in preamp boosts gain with 18 dB, 28 dB, and bypass mode
  • Low-cut and presence boost EQ settings for adjustable tonality
  • Improved resistance to electrical hum, interference, and noise
  • Internal air suspension shock isolation system eliminates mechanical noise
  • Included pop filter prevents plosives and helps with close-up vocal performances
  • Yoke mount for easy mounting on microphone stands and studio arms
  • Cardioid polar pattern with consistent sensitivity and frequency response
  • Durable build protects microphone capsule for long-term reliability

Zoom L-8 mixer & recorder Specifications

INPUTS AND OUTPUTS / NUMBER OF CHANNELS

Inputs: MIC/LINE : 6
  LINE : 2
Output: MASTER OUT : 1
  MASTER OUT (PHONES) : 1
  MONITOR OUT (PHONES) : 3


INPUTS

MIC/LINE: Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
  Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON)
  Input impedance: XLR: 3 kΩ
  Input impedance: TRS: 3 kΩ/1 MΩ (when Hi-Z ON)
  Maximum input level: –2 dBu when –26dB switch OFF (at 0 dBFS)
  Maximum input level: +24 dBu when –26dB switch ON (at 0 dBFS)
  Phantom power: +48 V
LINE: Type: TS phone jack
  Input impedance: 10 kΩ
  Maximum input level: +3 dBu
Smartphone connection jack: Type: TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
  Input impedance: 10 kΩ
  Maximum input level: +3 dBu


OUTPUT

MASTER OUT: Type: XLR jacks (balanced)
  Maximum output level: +14.5 dBu
  Output impedance: 100 Ω
MASTER OUT (PHONES): Type: Standard stereo phone jack
  Maximum output level: 10 mW + 10 mW (60Ω load)
  Output impedance: 10 Ω
MONITOR OUT (PHONES): Type: Standard stereo phone jack
  Maximum output level: 10 mW + 10 mW (60Ω load)
  Output impedance: 10 Ω


BUSES

MASTER: 1
MONITOR: 3
SEND EFX: 1


CHANNEL STRIP

LOW CUT: 75 Hz, 12 dB/OCT
EQ: HIGH: 10 kHz, ±15 dB, shelving
  MID: 2.5 kHz, ±15 dB, peaking
  LOW: 100 Hz, ±15 dB, shelving

Level meter: 9 segments
Send effects: 8 types


RECORDER

Maximum simultaneous recording tracks: 12 at 44.1/48/96 kHz
Maximum simultaneous playback tracks: 10
Recording format: WAV 44.1/48/96 kHz,　16/24-bit,　mono/stereo
Recording media: 4GB – 32GB SDHC-compliant cards (Class 10 or higher)
  64GB – 1TB SDXC-compliant cards (Class 10 or higher)


AUDIO INTERFACE

44.1/48 kHz: Recording: 12 channels
  Playback: 4 channels
Bit depth: 24-bit
Interface: USB 2.0


SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE

Windows: OS： Windows® 8.1 / 10 / 11 (32bit/64bit)
  CPU:  Intel® Core i3 or faster*
  USB: USB 3.0/USB 2.0**
  * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
  ** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
Mac: OS： macOS 10.12 ~ 26
  CPU: Intel® Core i3 or faster
  USB: USB 3.0/USB 2.0*
  * Operation is not guaranteed when used with USB hubs or expansion cards.
iPhone/iPad: OS： iOS 10 ~ 26, iPadOS 15 ~ 26
  * Apple Lightning-to-USB Camera Adapter required.


CARD READER

Class: Mass storage USB 2.0 High Speed

Sampling frequency: 44.1/48/96 kHz
Frequency response: 20 Hz – 20 kHz: –1 dB at 44.1 kHz
  20 Hz – 40 kHz: –3 dB at 96 kHz (when GAIN at 3 o'clock)
Equivalent input noise: –121 dBu or less (IHF-A) at +54dB/150Ω input
Display: LCD with backlight (96×64 resolution)
Power: 4 AA batteries (alkaline, lithium, or rechargeable NiMH)
  AC adapter (ZOOM AD-17): DC 5V/1A
  Supports USB bus power
Estimated continuous recording time using batteries: Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62Ω):
  Alkaline batteries: about 1.5 hours
  NiMH batteries (1900 mAh): about 3 hours
  Lithium batteries: about 5 hours
  • The above values are approximate.
  • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Power consumption: 5 W
External dimensions: 268 mm (W) × 282 mm (D) × 74 mm (H)
Weight (unit only): 1.56 kg


Shure SM7dB

Type: Dynamic (moving coil)
Polar Pattern: Cardioid
Frequency Response: 50 Hz to 20 kHz
Output Impedance:150Ω in Bypass Mode
27Ω in Preamp Mode

Sensitivity:-59 dBV/Pa (1.12 mV) Flat Response Bypass Mode (at 1 kHz, open circuit voltage)
-41 dBV/Pa (1.12 mV) Flat Response +18 Preamp Mode (at 1 kHz, open circuit voltage)
-31 dBV/Pa (1.12 mV) Flat Response +28 Preamp Mode (at 1 kHz, open circuit voltage)

Polarity: Positive pressure on diaphragm produces positive voltage on Pin 2 relative to Pin 3
Net Weight: 837 g (1.875 lbs)
Housing: Black enamel aluminium and steel case with black foam windscreen
Product Code: SM7dB
