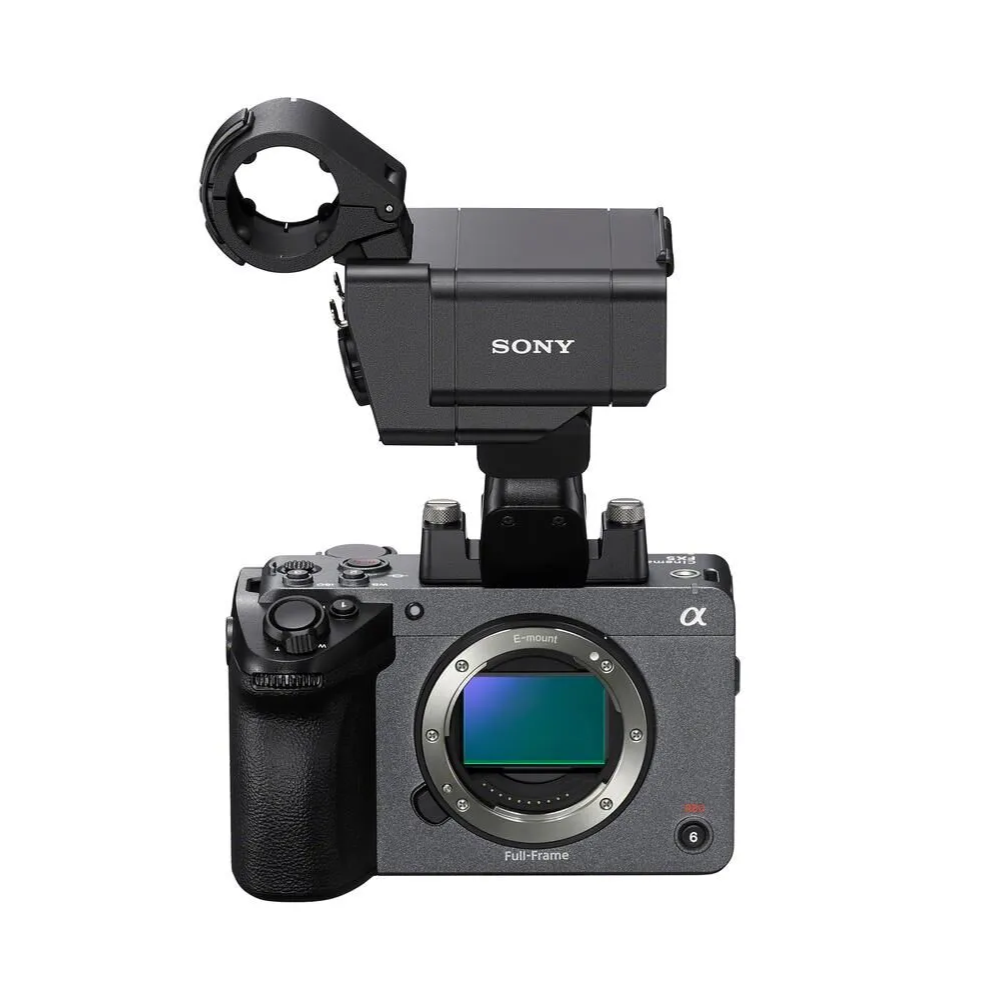

Sony FX5 Full-frame Cinema Line Camera with XLR handle
1x Sony FX5
4x Rechargeable Battery NP-SA100
1x Battery Charger BC-SAD1
1x Body cap
1x XLR handle unit
1x Top Mic
1x 15mm rod mount
2x 15mm 21cm rods
3x 160GB CFexpress Type A cards
1x CFexpress Type A card reader
1x Headphones
- Full-frame stacked Exmor RS sensor and BIONZ XR2 engine with AI processing unit
- Internal 16-bit scene-linear X-OCN recording for efficient post-production
- Open Gate plus versatile image scan modes, with up to 5K 120 fps and 4K 240 fps recording
- 15+ stops latitude, three Base ISO settings and Dual Gain Shooting for flexible low-noise shooting
- Compact Cinema Line body with BIG6 (HOME) screen, 4-axis LCD, and advanced monitoring support
| GENERAL | |
| Camera type | Interchangeable lens digital camera |
| Lens mount | E-mount |
| CAMERA SECTION | |
| Type | 35mm full frame (35.9 x 24.0 mm), Exmor RS CMOS sensor |
| Number of pixels (effective)*1 | Approx. 16.6 megapixels max. |
| Number of pixels (total) | Approx. 18.2 megapixels |
| Optical low pass filter | Yes |
| Latitude | 15+ stops (S-Log3) |
| Color temperature range | 2000 K - 15000 K |
| Anti-Dust function | Yes |
| RECORDING SYSTEM (MOVIE) | |
| Video compression | X-OCN |
| Video compression | XAVC HS: MPEG-H HEVC/H.265 |
| Video compression | XAVC S: MPEG-4 AVC/H.264 |
| Audio recording format | LPCM 4ch (48 kHz 24 bit), PCM 4ch (48 kHz 32 bit float)*2 , LPCM 4ch (96 kHz 24 bit)*2 , PCM 4ch (96 kHz 32 bit float)*2 |
| MOVIE FUNCTION | |
| Slow & Quick Motion (S&Q) | Yes |
| Proxy recording | Yes |
| TC/UB | Yes |
| RAW Output | Yes (HDMI) |
| Memory card slot | SLOT A: Multi slot for SDXC (UHS-I/II compliant) memory card / CFexpress 2 Type A card, SLOT B: Multi slot for SDXC (UHS-I/II compliant) memory card / CFexpress 2 Type A card |
| FOCUS SYSTEM | |
| Type | Fast Hybrid AF (phase-detection AF / contrast-detection AF) |
| Focus point | Max. 759 points (phase-detection AF) |
| Recognition target (Movies) | Human |
| Recognition target (Movies) | Animal |
| Recognition target (Movies) | Bird |
| Other features | AF Subj. Shift Sensitivity (Movie) |
| AF Transition Speed (Movie) | |
| Focus Map (Movie) | |
| AF Assist (Movie) | |
| ISO sensitivity | ISO 320 - 409600 equivalent, AUTO (ISO 320 - 409600, selectable upper limit) |
| LCD SCREEN | |
| Type | 8.8 cm (3.5-type) type TFT |
| Touch panel | Yes |
| Number of dots (total) | 2 764 800 dots |
| Adjustable angle | Opening Angles (approx.): Up 98 °, down 40 °, side 180 °, rotation 270 ° |
| CLEAR IMAGE ZOOM | |
| Movies | Approx. 1.5x (4K), Approx. 2x (HD) |
| SHUTTER | |
| Shutter speed | Movies: 64 F to 1/8000 s |
| IMAGE STABILISATION | |
| Type | Image sensor-shift mechanism with 5-axis compensation (compensation depends on lens specifications) |
| Mode | Movie: Dynamic active / Active / Standard / Off |
| ACCESSIBILITY | |
| FUNCTIONS | Screen Reader |
| Focus Magnifier | |
| Focus Map (Movie) | |
| Peaking Display | |
| Subject Recognition in AF | |
| Touch Focus | |
| Touch Tracking | |
| Multi-angle LCD screen | |
| Custom function | |
| Enlarge Screen | |
| INTERFACE | |
| PC interface | Mass-storage |
| Multi / Micro USB terminal*3 | - |
| USB Type-C® Terminal | Yes (PORT1: SuperSpeed USB 10 Gbps (USB 3.2) compatible, PORT2: Hi-Speed USB 480 Mbps (USB 2.0) compatible) |
| Wireless LAN (built-in) | Yes (Wi-Fi Compatible, IEEE 802.11a/b/g/n/ac/ax (2.4 GHz band/5 GHz band/6 GHz band))*4 |
| Bluetooth | Yes (Bluetooth Standard Ver. 5.3 (2.4 GHz band)) |
| HDMI output | HDMI connector (Type-A) |
| Multi Interface Shoe*6 | Yes (with Digital Audio Interface) |
| Mic Terminal | Yes (3.5 mm Stereo minijack) |
| XLR audio input | Yes (3-pin (female) x2) |
| Headphone terminal | Yes (3.5 mm Stereo minijack) |
| Remote Control (Wireless) | Yes (Bluetooth remote control) |
| LAN terminal | Yes (2.5GBASE-T, 1000BASE-T, 100BASE-TX) |
| Functions | FTP Transfer Func. (Wired LAN, USB Tethering, Wi-Fi) |
| VF terminal | Yes |
| NETWORK STREAMING | |
| Video data format | MPEG-4 AVC/H.264 |
| MPEG-H HEVC/H.265 *7 | |
| Video resolution | 3840 x 2160 |
| 1920 x 1080 | |
| 1280 x 720 | |
| Audio data format | AAC-LC 2ch (16bit 48 kHz) |
| Protocol | RTMP |
| RTMPS | |
| SRT | |
| AUDIO | |
| Microphone | Built-in, stereo |
| Speaker | Built-in, monaural |
| LENS COMPENSATION | |
| Lens compensation | Shading, Chromatic Aberration, Distortion, Breathing (Movie) |
| POWER | |
| Battery | One rechargeable battery pack NP-SA100 |
| Movies (actual shooting)*8 | Approx. 105 min (LCD monitor) (CIPA standard) |
| Movies (continuous shooting) | Approx. 170 min (LCD monitor) (CIPA standard) |
| Internal battery charge | Yes (Available with USB Type-C terminal. USB Power Delivery compatible)*9 |
| USB power supply | Yes (Available with USB Type-C Terminal. USB Power Delivery compatible) |
| Power consumption | |
| With LCD screen | Approx. 7.4 W (with FE 28-70mm F3.5-5.6 OSS II lens attached) |
| WEIGHT | |
| including Accessory | Approx.1046 g |
| With battery and memory card | Approx. 734 g |
| With battery and memory card (oz.) | Approx. 1 lb 9.9 oz |
| Body only | Approx. 643 g |
| Body only (oz.) | Approx. 1 lb 6.7 oz |
| DIMENSIONS | |
| Dimensions (W x H x D) | Approx. 132.2 x 79.0 x 87.0 mm (from grip to monitor) |
| Approx. 5 1/4 x 3 1/8 x 3 1/2 inches (from grip to monitor) | |
| OPERATION | |
| Operating temperature | 0 - 40 ℃ / 32 - 104 °F |
| Storage temperature | -20 to 55 ℃ / -4 to 131 °F |
| SUPPLIED ACCESSORIES | |
| Supplied Accessory | Rechargeable Battery NP-SA100 |
| Battery Charger BC-SAD1*10 | |
| Body cap | |
| Accessory shoe cap | |
| VF terminal protect cap | |
| XLR handle unit | |
| Handle shoe cap | |
| Accessory shoe kit | |
| NOTES | |
| *1 Number of effective pixels varies depending on attached lenses and camera settings. | |
| *2 When using accessories that support 4ch output / 96 kHz / 32 bit float with the Multi Interface Shoe | |
| *3 Supports Micro USB compatible device. | |
| *4 Models sold in some countries/regions support IEEE 802.11b/g/n/ax (2.4GHz) wireless LAN only or 802.11a/b/g/n/ac/ax (2.4GHz/5GHz) wireless LAN only. | |
| *5 Models sold in some countries/regions support IEEE 802.11b/g/n/ax (2.4GHz) wireless LAN only. | |
| *6 Sony accessories for the Accessory Shoe can be attached. | |
| *7 When [Protocol] is set to [RTMP/RTMPS], [MPEG-4 AVC/H.264] is only available. | |
| *8 Indication recording time, which is defined by repeating the cycle: Power on, start recording, zoom , stand-by and power off. | |
| *9 Requires USB PD (27 W min.) external power supply and cable if charging the battery pack while it is inserted into the camera. | |
| *10 USB PD compatible power supply and USB cable are not included for the Battery Charger BC-SAD1 (supplied). Simultaneous two-battery charging requires a USB PD compatible power supply that can deliver 45 W or higher. Single-battery charging requires a USB PD compatible power supply that can deliver 27 W or higher. A USB cable that support USB PD is required in both cases. | |
